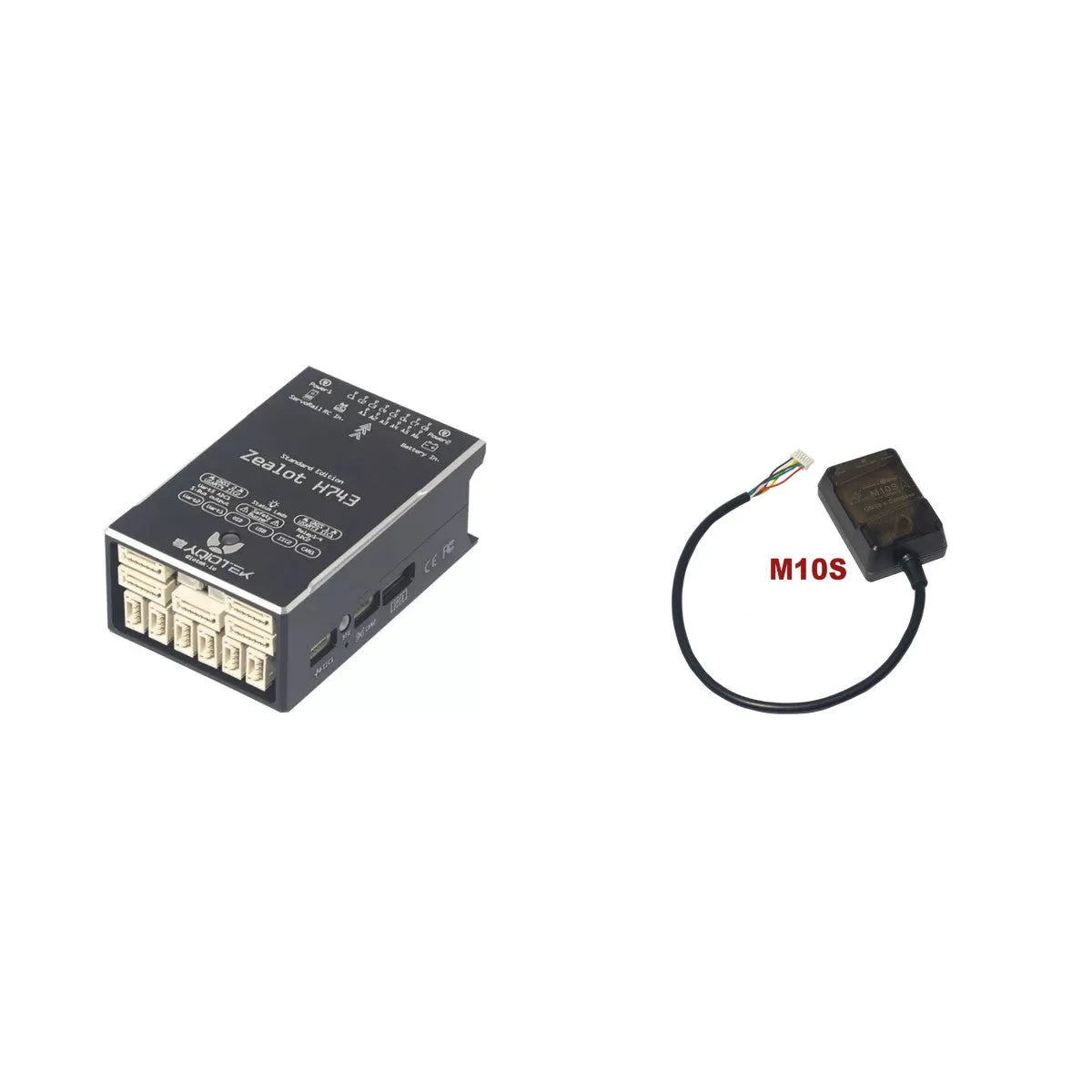

QIOTEK ZealotH743 PIXHAWK Flight Control PIX Vertical RC Helicopter Multi Axis with M10S TTL GNSS - Standard version + GPS

QIOTEK ZealotH743 PIXHAWK Flight Control PIX Vertical RC Helicopter Multi Axis with with M10S TTL GNSS User Manual Description：The QioTek ZealotH743 is an internal vibration dampened autopilot with a protective CNC metal case for ruggedness.It features fully redundant sensors, an expanded number of outputs, temperature-controlled IMUs, and has an integrated AT7456E OSD chip. The Zealot-H743 has higher specs than many competitors!The Zealot H743 supports all versions of Ardupilot from 4.2.0 including ArduPlane, ArduCopter, ArduRover, ArduSub. SpecificationsProcessor:MCU - STM32H743VIT636KB FRAM - FM25V02Standard Edition SensorsGyro/Accelerometers: ICM42688P, ICM40605, ICM20689Barometers: DPS3018 *2Compass: QMC5883L Power4.1-6.0V DC from USB (internal circuitry and RX only) or via 2 x PowerModule connectors, or via internal BEC off VBAT input pin. All 5V pins are powered when USB, or Power Module(s), or VBAT input is used.Internal 5V, 1.5A internal BEC directly can be used with up to 6S LIPO batteries to supply board and peripheral power supply up to 1.5A max with voltage monitoring via BAT2 monitor(500ma max recommended).ADC monitoring of board voltageADC monitoring of Servo/Output’s power railInterfaces/Connectivity14 PWM Outputs with independent power rail for external power source4 Relay outputsMicroSD card slotMicro USB or remote USB via a JST_GH connectorBuilt-in RGB LED (On three sides)Built-in AT7456E OSDFD-CAN interface *2Two voltage & current monitoring and servo rail
