Happymodel 2.4g ExpressLRS ELRS TX Module ES24TX-Lite for T-lite - ELRS TX Module

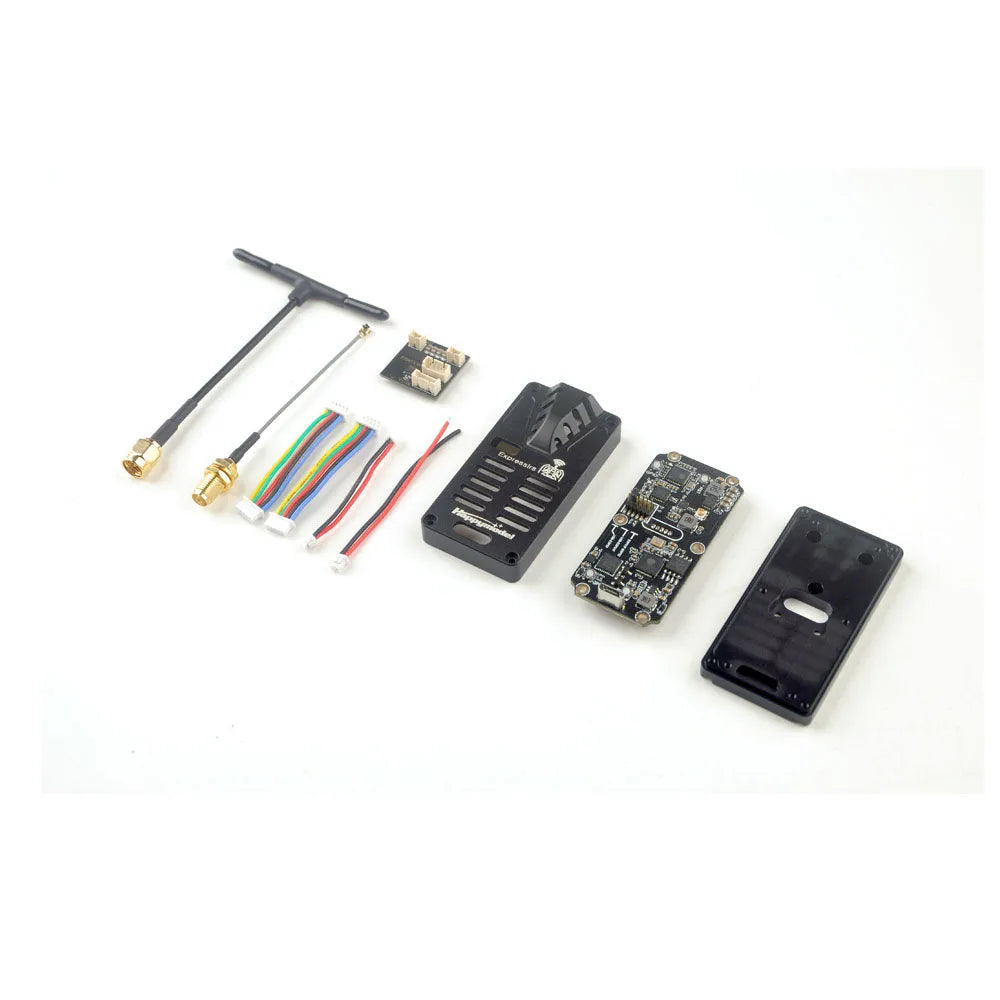

Happymodel 2.4g ExpressLRS ELRS TX module ES24TX-Lite for T-lite Introduction：Specific Lite 2.4GHz ExpressLRS TX module for Jumper T-lite is coming out now.This Lite TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX –Lite module is a complete solution which is already pre-load the Expresslrs firmware and it’s plug and play for Jumper T-lite.This Lite TX module come with CNC Aluminum alloy case which could help the module to dissipate heat under high power conditions.Due to the power supply defect of T-lite with external high power TX module, we provide a power module to ensure that the TX module can work stably under high power conditions. How to Setup ExpressLRS Happymodel 2.4GHz TX and RX？ Specifications:Regulatory Domain: ISM2400MCU:ESP32(main),ESP8285(aux,as espbackpack)RF chip:SX1280IMLTRTJR standard 5pin socketFrequency Range:2400 MHz to 2500 MHzMaximum receive refresh rate:500HzMinimum receiver refresh rate:25HzRF Output Power:10dBm~24dBmPower supply voltage:3v~4.5vWeight:7.5gram(without antenna and case）Dimension:57mm*27mm*12mm(Without CNC case)Antenna gain:1.87dBiPackage included: ES24TX-Lite*1T_Lite EXTCONV power module*124TX80 antenna*1CNC Aluminum alloy case*1Antenna adapter cable*1Connection wire*1 set Note:Since the official ExpressLRS perfect program has
