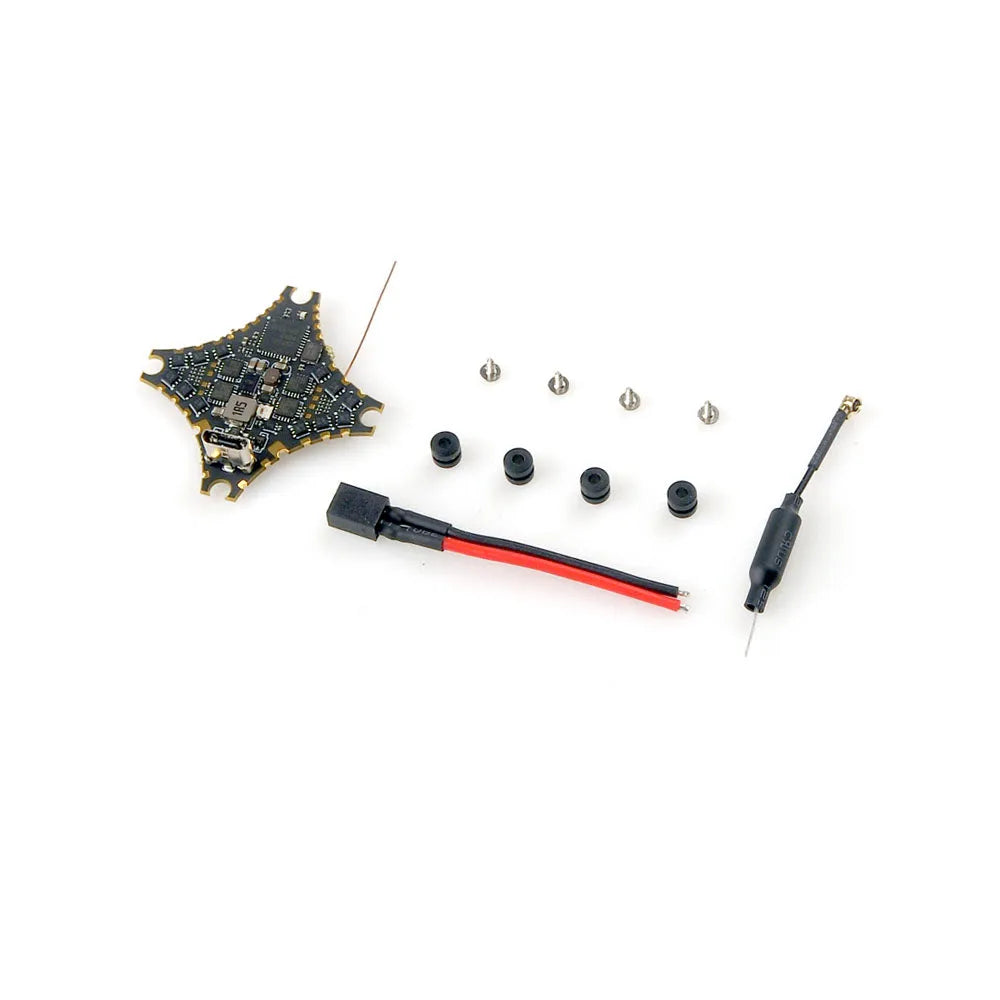

Happymodel SuperX ELRS AIO 5-IN-1 Flight controller for Mobula6 2024

SuperX ELRS AIO 5-IN-1 Flight Controller – Ultra-Compact 1S FPV Powerhouse Take your micro FPV build to the next level with the SuperX ELRS AIO 5-in-1 flight controller – a compact, high-performance solution designed for serious pilots who demand integration, reliability, and power in one board. Key Features: MCU & Core: STM32F411CEU6 (100MHz, 512KB Flash), with integrated ESP32-PICO-D4 Gyro Sensor: BMI270 with SPI connection Mounting: 25.5mm x 25.5mm pattern Power Supply: Supports 1S LiPo input (DC 2.9V–4.35V) Integrated 4-in-1 ESC: Rated for 5A continuous, 6A peak (3s) Factory firmware: Bluejay v0.19.2 Protocol: DSHOT300 (Recommend Startup Min1100 / Max1200) Firmware Target: O-H-5 48KHZ BLHeliSuite programmable Onboard ExpressLRS Receiver: Firmware: ExpressLRS v3.0 Frequency: 2.4GHz Telemetry Output: <12dBm Protocol: Serial-based CRSF Packet Rates: 50Hz / 150Hz / 250Hz / 500Hz Firmware Target: HappyModel AIO 2.4GHz RX+VTX Compatible with ExpressLRS V3.x.x TX modules Supports firmware flashing via Wi-Fi Integrated 5.8GHz VTX Module: Firmware: OPENVTX MSP VTX control with PIT mode support Channels: 40CH Power Output: 0 / RCE / 25mW / 100mW / 400mW Power Supply: DC 5V, <650mA (at 400mW) Antenna Connector: U.FL Additional Sensors: Built-in voltage meter sensor (Scale: 110) Built-in current meter sensor (Scale: 1175) Important Note: If you click "Save and Reboot" from the Port tab in Betaflight Configurator and see "VTX Device Ready: False" in the Video Transmitter tab, simply p
